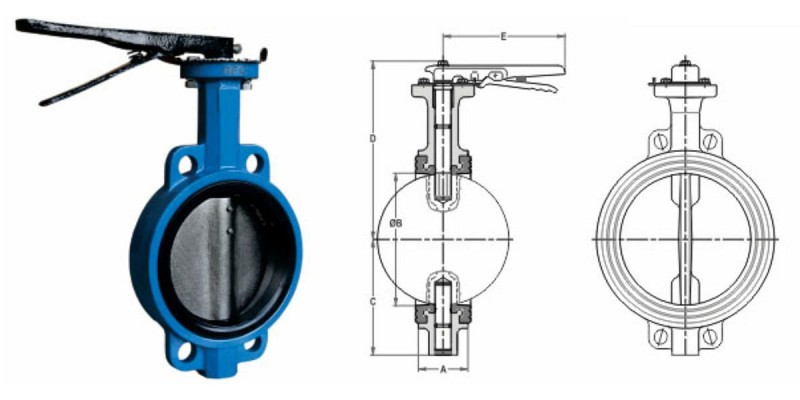

RUBBER - LINED BUTTERFLY VALVE
Applications
- Water
- Air
- Effluents
- Sea Water & Brine
- Weak Acid & Alkali
- Oils
Size Range
| CLASS RATING | SIZE RANGE |
| PN 10 | 50mm to 600mm |
| PN 16 | 50mm to 600mm |
| TESTING STANDARD | DESIGN STANDARD | TEST PRESSURE Kg/cm2 | PN 10 | PN 16 |
|
API 598 / BS EN 12266-Part 1 |
API 609-CAT A BS EN 593 |
HYDRO SHELL | 15 | 24 |
| SEAT | 11 | 18 | ||
| AIR SEAT | 7 | 7 |
| COMPONENTS | MATERIALS |
| BODY | CI (IS:210-FG 220) /WCB (ASTM A216) |
| DISC | SGI (ASTM A536-60.40.18)/CF8 & CF8M(ASTM A351) |
| SEAT | EPDM / NITRILE (Replaceable/Moulded) |
| STEM | 410/304/316 - (ASTM A276) |
| O-RING | NITRILE |
* OPTIONAL FEATURES UPON REQUEST
- Wafer-lugged ends.
- Pneumatic / Electrical actuator.
- Other MOC, as per customer requirement.
- Other flange-drillings, subject to confirmation.
- Lever operation up to sizes 150NB; Gear actuators are recommended for sizes 200NB and above.
