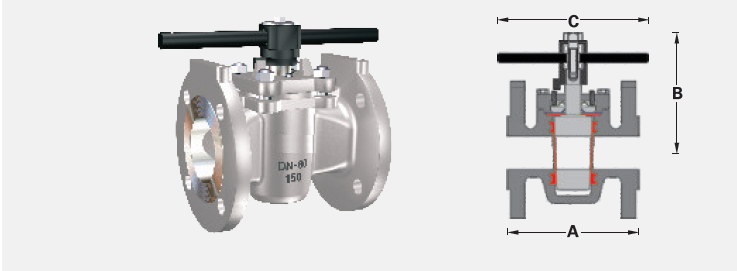

SLEEVED PLUG VALVE
Applications (Standard Plug Valves)
- Chemical Process Plants
- Fertilizer Plants
- Dyes and Pigments
- Pesticides
- Caustic Chlorine Plants
- Hazardous Fluids
- Acids and Alkalies
Size Range
| CLASS RATING | SIZE RANGE |
| 150 | 15mm to 300mm |
| 300 | 15mm to 300mm |
| 600 | 15mm to 300mm |
| TESTING STANDARD | DESIGN STANDARD | TESTING PRESSURE IN BAR | 150 | 300 | 600 |
|
API 598 & EN 12266-1 |
API 599, BS 5353 & API 6D | HYDRO SHELL | 30 | 76 | 15 |
| HYDRO SEAT | 22 | 56 | 11 | ||
| AIR SEAT (Soft Seat) | 7 | 7 | 7 |
| COMPONENTS | MATERIALS |
| Body & Cover | Steel ASTM A216 Gr. WCB/ ASTM A351 Gr. CF8 / CF8M / CN7M |
| Plug | Steel ASTM A217 Gr. CA15 / ASTM A351 Gr. CF8 / CF8M / CN7M |
| Sleeve / Diaphragm | PTFE / CFT |
| Wedge Ring | PTFE / CFT / Grafoil |
| Metal Diaphragm / Static Eliminator | ASTM A240 Type 304 |
| Thrust Collar | ASTM A351 Gr. CF8 |
| Adjusting Screws | ASTM A276 Type 304 |
| Fasteners | B7/B8/B8M |
| Adapter / Lever | Steel - Powder coated |
| Gear Unit | Housing in Cast Iron, Gear in S. G. Iron and Worm in EN8 |
| Bearing | PTFE |
| Body Gasket | Grafoil |
| Surface Protection for Ductile Iron and Cast Carbon Steel Valves | Prime Coat: Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects. Additional External Coating: Synthetic Enamel. |
